VDI electric tug (M030)
| Characteristics | 1.1 | Manufacturer | Movexx International B.V. | ||
| 1.2 | Model designation | TT1500-S | |||
| 1.3 | Power unit |
Electric w. LiFePo4 battery |
|||
| 1.4 | Operation type | Pedestrian | |||
| 1.5* | Rated capacity/Load capacity | Q [t] | 1,5 | ||
| 1.7** | Rated drawbar pull | F [N] | 492 | ||
| 1.9 | Wheelbase | y [mm] | 712 | ||
| Weights | 2.1 | Weight incl. battery | kg | 230 | |
| 2.3 | Axle loading without load | front/rear | kg | 94/136 | |
| Wheels/Tyres | 3.1 | Tyres | front/rear | Solid Rubber | |
| 3.2 | Tyre size | front | mm | 125 x 35 | |
| 3.3 | Tyre size | rear | mm | 250 x 84 | |
| 3.4 | Auxiliary wheel size | mm | - | ||
| 3.5 | Wheels, number front/rear (x = drive) | 1/x2 | |||

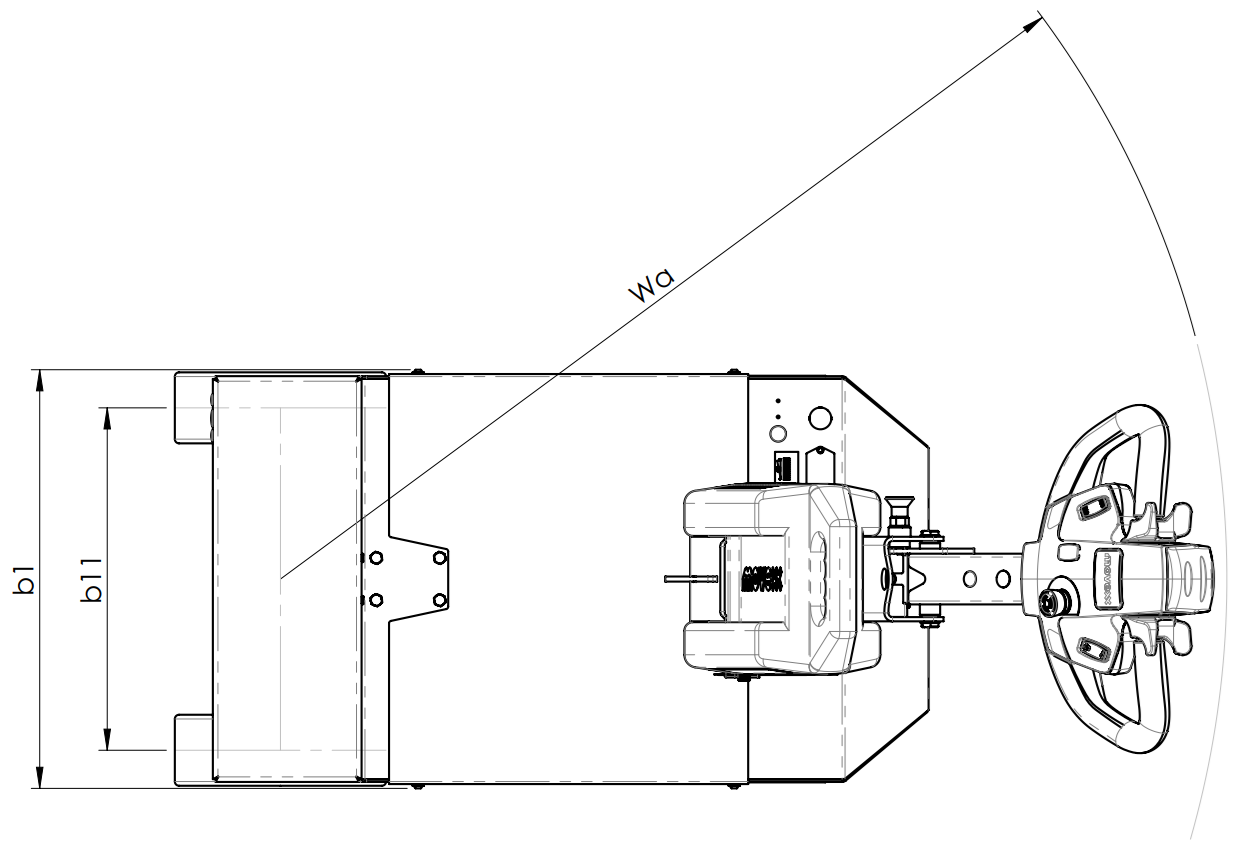

| 3.6 | Tread width | front/rear | b10/b11 [mm] | -/405 | |
| Dimensions | 4.8 | Stand height | min./max. | h7 [mm] | - |

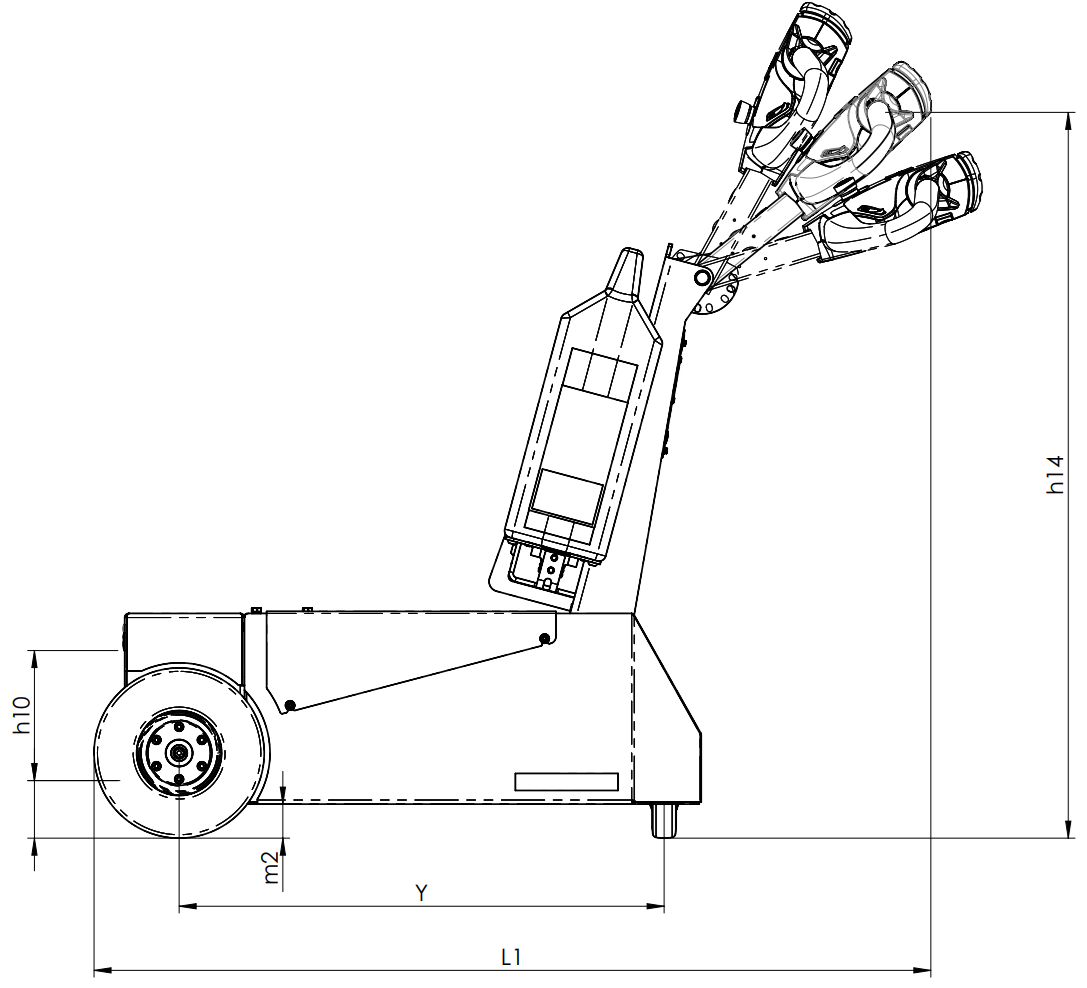

| 4.9 | Tiller height | min./max. | h14 [mm] | 950-1065-1145 | |
| 4.12 | Tow coupling height | h10 [mm] | 85 - 275 | ||
| 4.19 | Total length | l1 [mm] | 1230 | ||
| 4.21 | Total width | b1 [mm] | 495 | ||
| 4.32 | Ground clearance, center of wheel base | m2 [mm] | 50 | ||
| 4.35 | Turning radius | Wa [mm] | 1120 | ||
| Performance | 5.1 | Travel speed forwards | with/without load | km/h | 4/4 |
| 5.1.1 | Travel speed backwards | with/without load | km/h | 4/4 | |
| 5.5** | Max. drawbar pull (S2 = 60 Min) | with/without load | N | 490 | |
| 5.6** | Max. drawbar pull (S2 = 5 Min) | with/without load | N | 1050 | |
| 5.8* | Maximum slope (5 min) | with/without load | % | 0/15 | |
| 5.9 | Acceleration | with/without load | s | 10/8 | |
| 5.10 | Service brake | Electromagnetic | |||
| Drive | 6.1 | Drive motor output (S2 = 60 Min) | kW | 0,6 | |
| 6.4 | Battery voltage, nominal capacity | [V/Ah] | 24/20 | ||
| 6.5 | Battery weight +/- 5% | kg | 8,4 | ||
| Other | 8.1 | Drive control | DC | ||
| 10.7 | Noise level | dB(A) | 65 |

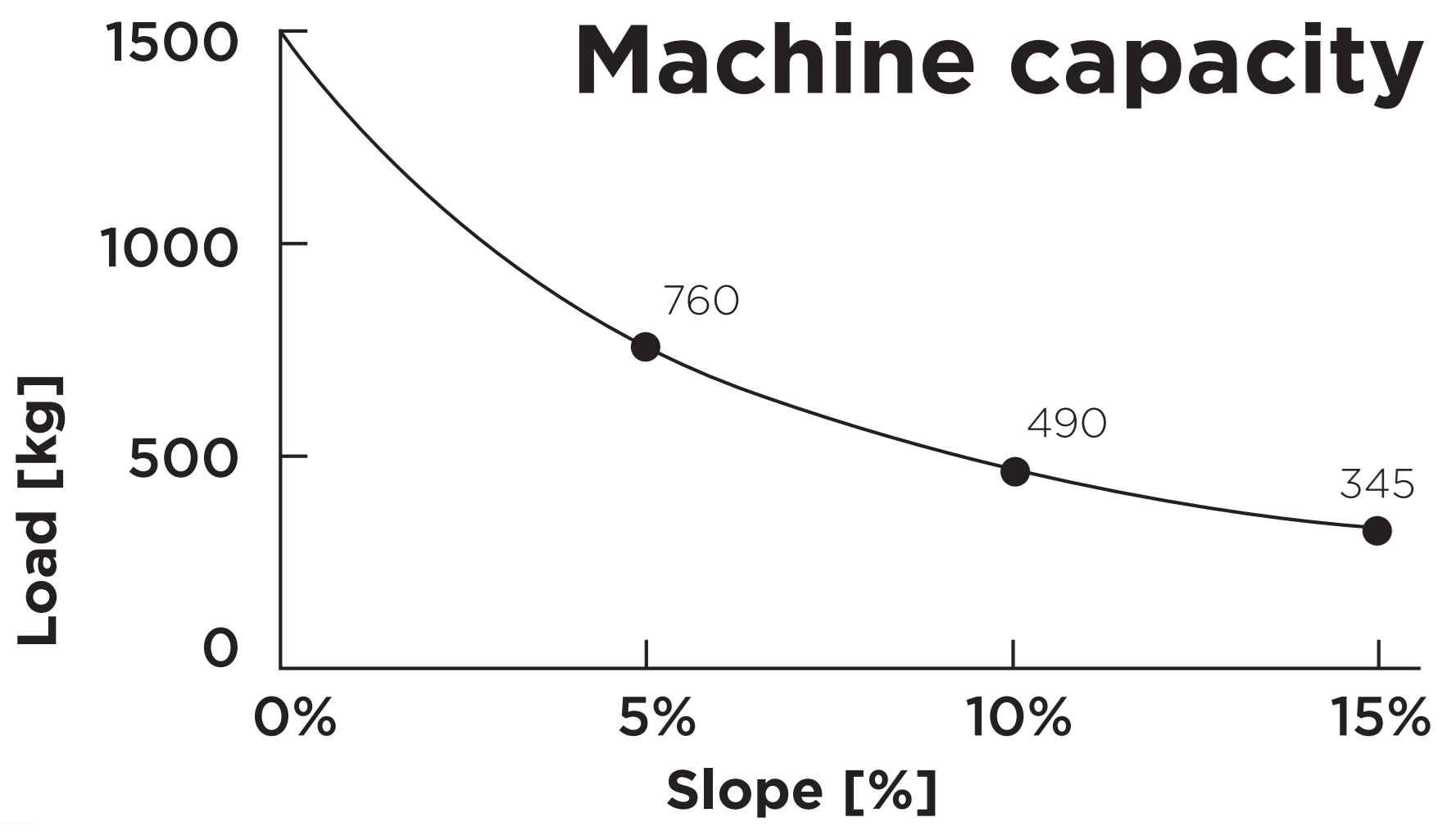

*The maximum payload is affected by the type of slope, operating time and floor type.
**The maximum drawbar load on the hook [N] is determined by the engine power of the machine but is affected by the type of wheels of the machine and of the towed trolley/load, the type of surface and the driveable weight of the machine.
